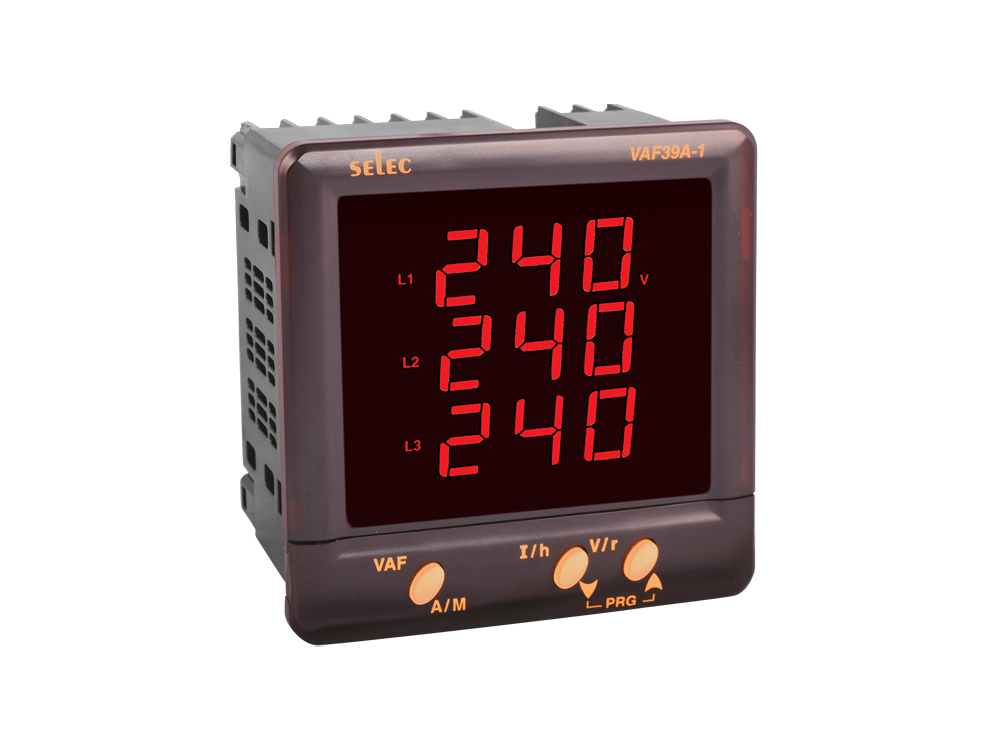

Selec VAF39 Power Analyzer
Selec
Rs12500.00Rs11500.00
1 Phase & 3 Phase systems
11 to 300V AC (L-N), 19 to 519V AC (L-L) measurement
Accuracy of ± 0.5% of voltage, ±1% of current, ±0.1Hz of frequency, ±0.5% for RPM & ±1% for run hour
3 rows 3 digits LCD display with back light
Panel mount
Supply voltage of 230V AC ±20%, 110V AC ±20%
Specifications
Display Type | 7 segment LED, Integrated with Parameter Units |
Display Configuration | 3 Rows of 3 Digits |
Electrical Connection | 3Ø – 4W, 3Ø -3W, 2Ø-3W, 1Ø - 2W |
CT Primary | 5A to 10kA (Programmable for any value) |
CT Secondary | 5A Fixed |
PT Primary | 100V to 500kV (Programmable for Any Aalue) |
PT Secondary | 100 to 500V AC (L-L) (Programmable for Any Value) |
Measuring Parameter | Voltage (L-N / L-L) (Individual / Average), Current (I1, I2, I3) (Individual / Average), Frequency, RPM, Run Hour |
Supply Voltage | 230V AC ±20% , 110V AC ±20% |
Size | 96 x 96mm |
Mounting Type | Panel Mount |
Certification | CE, RoHS & UL |
