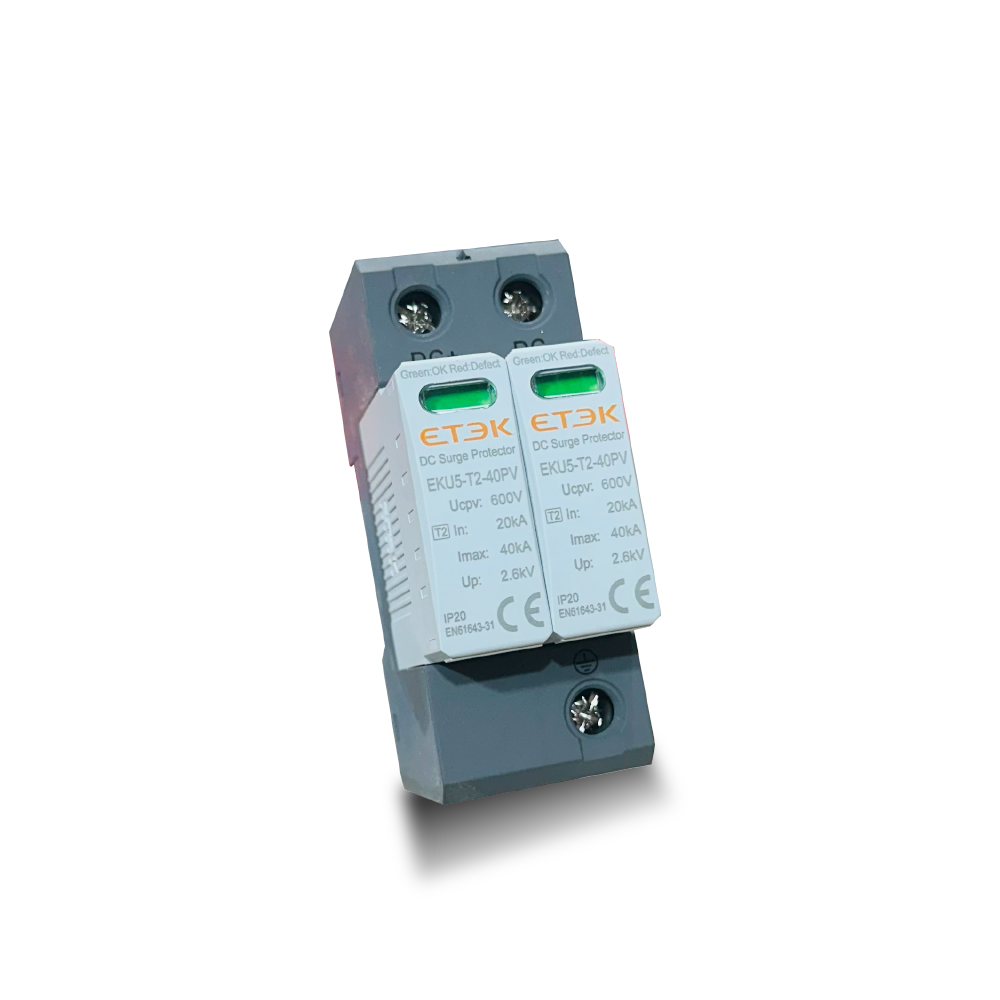

DC SPD 2 Pole
Solar Surge Protector
Rs4500.00Rs4300.00
Type 2 DC SPD, Imax 40kA, Class II PV Surge Protective Device
EKU5-T2-40 PV SPD is a DC surge protector specially designed for photovoltaic power supply systems. Max continuous operating voltage reach DC1500V.These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location is recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.
● Standard: IEC/EN 61643-31
● Surge Rating: Imax=40kA (8/20 µs)
● Voltage protection level (Up): <5,2kV
● IEC/EN Category: Class II / Type 2
● Max. continuous operating voltage (Ucpv): 600, 1000,1500V
● Housing: Pluggable Design
Porduct Overview
EKU5-T2-40PV Series is a pluggable multi-pole Type 2 PV Surge Protector (SPD) designed for use in photovoltaic solar applications. It is installed on the DC side to protect terminal devices in a PV system, such as solar panels and inverters, from the effects of lightning surge currents.
Technical parameters
Technical Data
No.of poles | 2P(2Mods),3P(3Mods) | |||
Location of Use | String box, Inverter | |||
Mode of protection | (DC+)-PE,(DC-)-PE,(DC+)-(DC-) | |||
Protective elements | High Energy MOV | |||
Maximum continuous operating DC voltage | Ucpv | 600V | 1000V | 1500V |
Norminal discharge current (8/20μs) | In | 20kA | ||
Total discharge current (8/20μs) | ITotal | 40kA | ||
Maximum discharge current (8/20μs) | Imax | 40kA | ||
Voltage protection level (2P) | Up | 2.6kV | 4.0kV | / |
Voltage protection level (3P) | Up | / | 4.0kV | 5.2kV |
Response time | tA | ≤25ns | ||
Operating temperature range | Tu | -40℃ to +80℃ | ||
Operating state/fault indication | Green/Red | |||
Cross-section area (Min.)/(Max.) | 4mm²/35mm² | |||
Mounting | 35 mm DIN Rail, EN 60715 | |||
Enclosure material | Thermal Plastic UL94-V0 | |||
Degree of protection | IP20 (built-in) | |||
